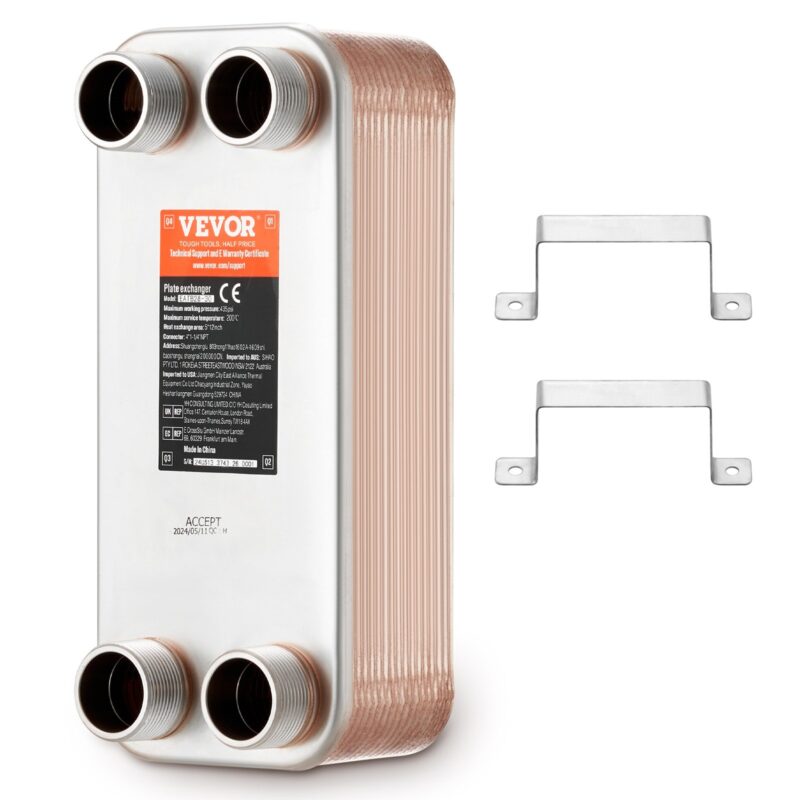

Heat Exchanger, 12.7 x 30.5 cm, 316 L
173,90 €
Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature.
In stock · delivery 21. – 26. October 2026
Description
Features
- High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.
- Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 260-360K BTU per hour, saving pump power and electricity, reducing overall application costs.
- Large Heat Exchange Area: The heat exchanger features 12.7 x 30.5 cm plates with up to 30 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -144to200°C.
- Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.
- Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.
Specifications
| Plaadi piirkond | 127x305mm |
| Soojusvõimsus | 260-360K BTU |
| Sadam | 10.2 x 2.54-0.64 cm MNPT External Thread |
| Paint | Stainless Steel + Copper Color |
| Model | EATB28-30 |
| Thermal Efficiency | 90～99% |
| Material | 304/316 Stainless Steel |
| Solder | 99.9% Copper Brazing |
| Plates Quantity(pcs) | 30 |
| Product Dimensions (LxWxH) | 301x126x110 mm |
| Net Weight(with Accessories) | 5.85kg |
| Number of Plates | 30 PCS |
| Package dimensions (H x W x L) | 17,5 x 17,5 x 32,5 cm |
| Brand | VEVOR |
